Oscilloscopeis an electronic test instrument that allows observation of constantly varying signal voltages , usually as a two-dimensional plot of one or more signals as a function of time. Other signals which can be converted to voltages and displayed.
Meanwhile, oscilloscope is ideal for designing, diagnosing, learning, andworking with electronics. Moreover, it is difficult to obtain a quality digital oscilloscope because of high costs, and even professionals are often limited in equipment access to designated engineering spaces.
Oscilloscopesoftware has come a long way with thissoftwareable to analyze other signals from circuits or devices. Most of the oscilloscope software available are spectrum analyser which read input signals and give FFT viewing mode in which users can read the frequency, crest factor, peak voltage and other perimeters.
Best oscilloscope software for Windows PCs
Winscope
This is an oscilloscope software that allows users to analyse input signal.
This input signal is received through the 3.5mm audio jack of a PC and is converted to graphical presentation of signal spectrum, measure frequency, plot Lissajous patterns and FFT spectrum.
Winscope has an easy interface users can start analysing signal by clicking theplay button on the interface of Winscope. This will open to a page to view the signal spectra.
The user interface of this Oscilloscope software, also gives various options to analyze input signal.
Features:
⇒Download it here
Capture sounds like a real technician with these great tools!

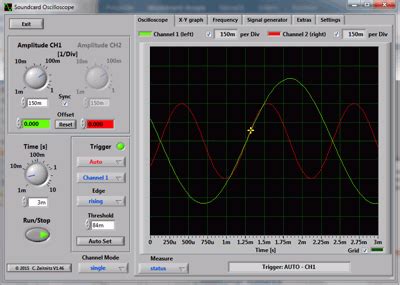

Soundcard Oscilloscope
This Oscilloscope software receives its data from Soundcards with 44.1kHz and 16 Bit resolution. Sound card oscilloscope has lots of features specifically being a signal generator and having other tools.
Users can also change the spectra plot parameters to view and analyze real-time signal spectra carefully. The channel amplitude for both channels can be set separately or both channels can be synced for common channel amplitude.
Features:
⇒Download it here
Oscilloscope
This is a simple oscilloscope software that basically shows the XY spectra of a signal. Users can input signal by using the 3.5mm audio jack or through a PC’s mic, this software can also be used to view a view the waveform of an audio file. It is very compatible with many audio file formats.
The major drawback of this software to users is the inability to analyze signal but the software gives some useful options whereby users can change certain parameters like stroke weight, hue (color), intensity and waveform scale.
Features:
⇒Download it here
Real-time Spectrum
This is an oscilloscope software that displays a real-time spectrum of signal inputs. Real-time spectrum detects input signal from the 3.5mm audio jack of users PC.
It also gives users access to displays real-time waveform and FFT waveform of input signals. Users also have flexible control over parameters like the dynamic range of the graph frequency and frame rate,
Features:
⇒Download here
VisualAnalyser
This is a popular and premium oscilloscope software. This oscilloscope software has lots of features and tools which helps with signal spectra analyser. Users will discover extensive tools to view signal data. Users will also know the values of various parameters, measure frequency, apply filters.
The unique interface on the software gives users a two signal spectra with one displaying the usual signal spectra, while the other displays FFT spectra
Users can tweak the zoom factor, ms/d value, positions of X and Y plots, etc. Certain values, such as: frequency, mean value, crest factor, peak voltage, and ZRLC. There are new options to capture spectrums.
Users can apply various filters on the input signal, then measure values and view spectra.Users can Set different filters for Channel A and B. The software comes with preloaded FIR low pass, FIR high pass, FIR band pass, FIR band reject, and IIR Notch. Users can also apply custom FIR filters to it.
Features:
⇒Download it here
Digilent’s new Analog Discovery 2
This software builds on the success of the first Discovery module with new features and great performance.
The Analog Discovery 2 contains a 2-channel 14-bit oscilloscope function with a sample rate of 100 MS/s, bandwidth beyond 30 MHz, a voltage range of ±25 V, and a max buffer size of 8,192 samples.
Features:
For a moderate cost of 300 dollars, analog discovery 2 gives nice money value, the Analog Discovery 2 comes with free software, unlike other USB oscilloscopes.
⇒Get Analog Discovery 2
FrequencyAnalyzer
Frequency Analyzeris an oscilloscope software that uses audio input from amicrophone connected to a PCand displays a real-time signal spectrum.
The software can also be used to analyze audio files in WAV or BMP format.
Features:
Looking for the best microphone there is? This guide will surely help you find it!
In conclusion, this post has highlighted the best oscilloscope software for Windows PC. And also the oscilloscope software list above gives great value and is the best available with quality features of their functionality.
